HSAjet CB

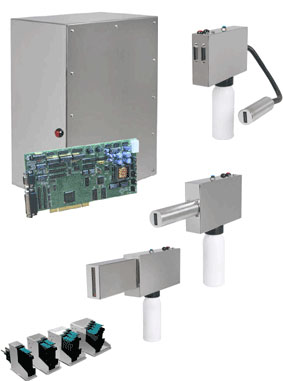

The HSAjet CB is a controller board to be mounted in a PC or in an HSA Industrial Print Controller (IPC) (see picture). The HSAjet CB can be connected to any HS Automatic printer, either based on Xaar, HP, or SII, to fullfill the need for an advanced printing solution with multiple printing possibilities
The HSAjet CB can be operated via networks and in connection with databases to print e.g. addressses. The HSAjet CB makes form- and page printing possible, enables printing of text fields, logos, counters, unlimited number of barcodes, dates, and 2D barcodes, and has the possibility of creating an unlimited amount of messages, e.g. from templates.
As your HSAjet CB interface you can either use a PC monitor, a terminal, a user-defined touch screen interface, or serial communication.
|
Print Capability Per CB
| Max print height per pen |
12,7 mm |
| Max print height |
50,8 mm |
| Variable data: |
Counter |
|
Time |
|
Date |
|
Barcode |
| Graphics |
BMP |
| Distance to surface: |
0,5 mm – 2,0 mm |
600 x 600 dpi
|
38 m/min |
| 300 x 300 dpi |
76 / 152 m/min |
| 150 x 300 dpi |
306 m/min |
| Max message length |
2,7 m |
| Number of lines |
Unlimited |
