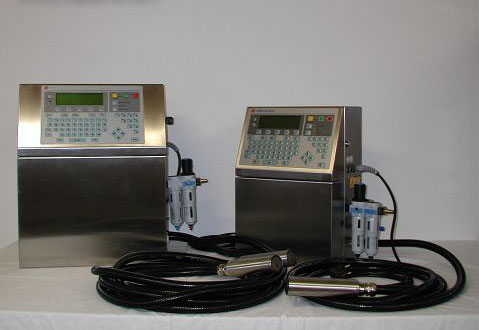

EBS 6000

The EBS 6000 has been constructed for operation in even the harshest environment. The waterspray protected stainless steel housing and the impermeable foil keypad guarantee protection against dust and liquids In especially dusty environments, the ventilated interior of the unit and the printhead ensure the proper functioning of the coder. The EBS 6000 is available with several special registers for updating text. Such features as time, date ( all formats), counters and length measurement can all printed. Variable data can also be updated via RS232 or via an optional program PNET for the control and networking of multiple printers. The WYSIWYG display and menu controls are the basis of a user friendly coder. Five languages are provided and it is possible to change from one language to another at any time. All warning signals are indicated on the display and via an acoustic alarm. The ink and solvent bottles are located in the door - saving space.

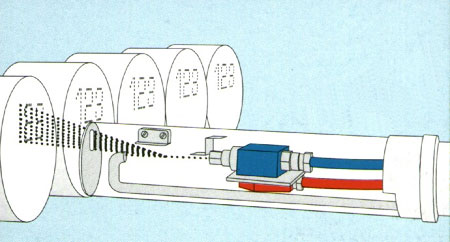

• Single printhead coder
• Non-pigmented inks
• Printhead position - as desired
• Print speed:
1488 char./sec with Matrix 7x5
355 char./sec with Matrix 16x10
68 char./sec with Matrix 25x15
32 char./sec with Matrix 32x15

• Print matrices: 5x5, 7x5, 9x5, 16x10, 21x15, 32x18, 9x7, 11x8, 16x4
• Combination of any desied attributes (e.g. bold, underline, cursive) and print heights
• Bold print up to 15 times of normal print density
• Graphics of desired lengths and print height of 32 dots; can be placed at any desired position within a text
• Barcodes with a height of 32 dots: EAN8, EAN13, 2/5, 2/5 INT, Datalogic, Code 39, and others
• Text length dependent upon memory capacity of 256 kB; maximum number of texts: 1024 (optional: 2000)
• Print height: 1.5 mm to 14.0 mm
• Distance head to object: 1.0 mm to 30.0 mm
• Printhead cable length: 4 m (optional: 6 m)
• Integrated graphic terminal; Optionally possible to connect to a computer with EBS's PNET program
• Extra interface with up to 38.4 kBd; Standard RS232, RS485 or TTL
• Detection of object(s) to be printed using an external detector
• Shaft encoder for use on production lines with irregular speeds
• Power supply: AC 87-240V/45-440Hz or DC 90-350V; Consumption: < 30W
• Air supply: 4.5 - 6.5 bar, competely free of dust, oil and water
• Air consumption: 0.02 m^3/min. with external vacuum pump, or 0.06 m^3/min. with internal vacuum generator
• Operating temperature: +5 to +40 Celcius; Special version available optionally: from -10 Celcius
• Humidity: up to 90%, without condensation
• Vibrations: max. 1 g/max. 10 Hz; Shocks: max. 1 g/max. 2 ms
• Weight: 16 kg
• Dimensions: (435x300x202)mm of (Height x Width x Depth)
