EBS 250
.jpg)
The HANDJET® EBS 250 is an innovative product made by EBS Ink-Jet Systeme GmbH. After continual intensive research and further development of the well known production line
Ink-Jet printer PicAS EBS-200, we are now able to introduce the fully versatile, cable-free(!) HANDJET® EBS 250, thus marking the beginning of a new era in hand-coding.
.jpg)
Our NEW product is the portable, manual, ultra-compact and light INK-JET printer equipped with a print-head with electromagnetic valves; it is battery operated and radio-controlled.
This unique device - weighing only 980 grams – has been created to satisfy users for whom the freedom of product marking, coding and labelling in terms of place and time is the
fundamental criterion. It is also the device for users who demand low purchase cost, cost-effective operation and not excessively sophisticated practical functions. However,
.jpg)
the model HANDJET® EBS 250 offers all basic capabilities of INK-JET type printers.
The HANDJET® EBS 250 with its patented print technology replaces antiqated hand coders (such as stencil machines, stamps and roll coders, laborious and expensive in use and problematic with ink management).
.jpg)
.jpg)
|
 |

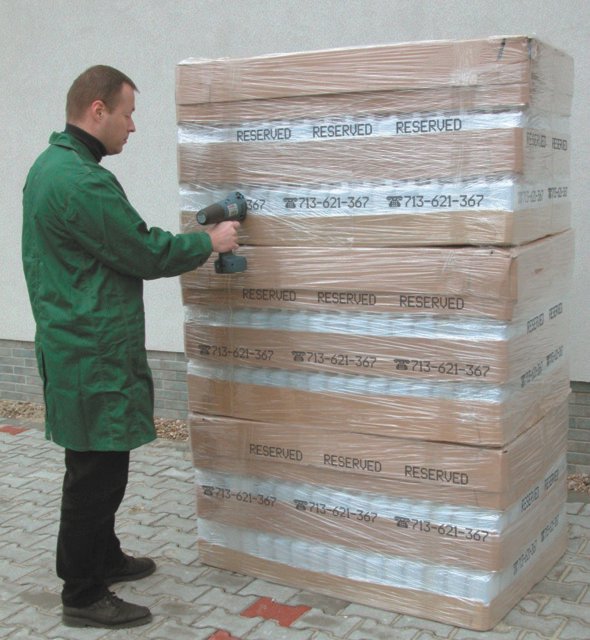

making durable and legible prints on a variety of types of surface, smooth, porous and also uneven surfaces of irregular shapes, such as pipes, barrels, bags, boxes, construction materials, |
|
non-contact marking (print) technology, with only one drive roll requiring contact in order to synchronise printing, |
|
full freedom of printing offered by the portable, manual printer which is controlled in a non-contact way, |
|
automatic update of the date and time, service life/period of storage, object numbers (via incremental or decremental counters), |
|
the possibility of editing and printing texts and graphics symbols with the use of Windows® (True Type) fonts as standard, |
|
the availability of diacritical national characters and graphics characters (a set of manufacturer-defined characters) for information, warning, handling or other purposes as standard, |
|
supporting printing of various texts on successive lines or on various object sides, |
|
working with any PC via the printer’s own control program running under MS Windows® 98SE / ME / NT / 2000 / XP®; wireless printer-computer communications through an RFI radio module connected to the computer via an USB or RS232 interface. |
| Performance parameters |
 |
| Parameter |
Value |
| Print height |
27 mm with a 16-nozzle printer |
| Height of objects to be labelled |
from 70 mm - contact with both rolls,
from 35 mm - contact with the lower roll only to print with, for example, only 7 nozzles.
A guide and rolls can be used optionally to support rectilinear printing; they are most useful for line printing, for labelling pipes, barrels and other cylindrical objects. |
| Working position of the printer |
any |
| Nozzle diameter |
150µm as standard,
120µm, 170µm, 200µm optionally |
| Number of vertical rows printed at the same time |
1 |
| Maximum number of characters per text |
1300 (along with control characters, if the printer’s built-in fonts are used) |
| Number of texts and print parameters sets stored in the printer’s memory at the same time |
from 1 to 10; texts are loaded into the printer via a PC |
| Special characters |
Diacritical national characters, graphics characters for information, warning, handling or other purposes |
| Variable fields |
Date and time in any format, including expiry date/period of service, incremental or decremental counters, universal counter (of subassemblies, pallets, meters, etc.) |
| Editing texts and print parameters, printer control |
IBM-compatible PC communicating with the printer via a cordless/radio line (within the distance of 50 m), |
| Recommended minimum PC requirements: |
IBM-compatible PC, equivalent to Pentium 200, 32 MB RAM, 20 MB of free space on HDD,
EBS-250 printer control program version 1.5 or later installed, to be run under one of the following operating systems Windows® 98SE/ME/NT/2000/XP/Vista®,
(!) If Windows NT® is running on your PC, the printer communicates with the PC exclusively via an RS-232 interface (not via USB).
the possibility of grouping up to 60 printers into a network which is radio-controlled with the use of a PC or radio terminal. |
| Timing |
Either synchronised with rotational speed of the lower guide roll or at time intervals by an internal generator regardless of the printer travel rate during printing. |
Power supply
Approximate operating time when the battery is fully charged
Charging
|
With built-in batteries,
50 hours of non-stop printing at the temperature of 20°C, automatic low battery indication,
Automatically via an external DC 24V, 1 A power pack,
Charging time - less than 150 minutes (< 2.5 h),
Number of charging cycles: 500 (up to 70% of initial capacity) |
Ink
Container capacity
|
Available in easily detachable containers with bayonet fixing. It is made on the basis of alcohol, acetone or water, in various colours (among others in white, yellow, blue, green, red or black) to be ordered from catalogue.
110 ml is enough to print about 100 000 characters with 7x5 pix matrix or about 17 000 characters for 16x10 pix matrix. |
| Working temperature range |
from +5°C to +40°C |
| Storage temperature range (over a longer period) |
from +1°C to +45°C if water-based ink is used for printing,
from -10°C to +45°C if acetone or ethanol-based ink is used for printing. |
Dimensions in vertical position
(length / width / height) |
240 / 130 / 265 mm |
| Weight |
980±10 g - the printer with a battery and full ink container, without a power pack and cable. |
|
