EBS 1500
|

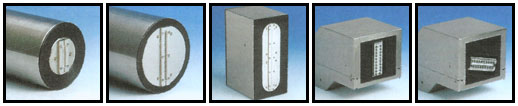

The EBS 1500 series are controllers that operate modular, seperate from the printhead. The available printheads are in a high quality steel housing and with Electromagnetic-technology (EM - up to 64 dots) or with Pieze-technology (Piezo - up to 352 dots). The printing height variates in the range of 5-115 mm with the EM-head and 10-48 mm with the Piezo-head.

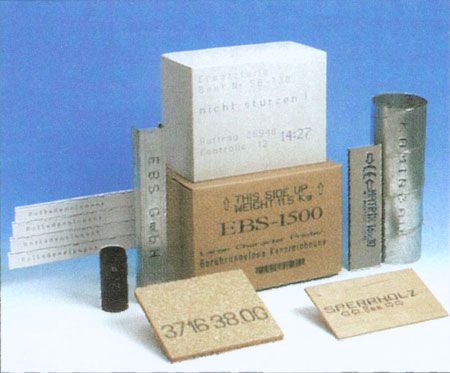

It is also important on what kind of material you want to print on. EM-heads use solvent based inks that are very adhesive especially on non-porous surfaces (metal, glass, plastics, etc) in contrast to Piezo-heads which are using ink for porous surfaces (cardboard, wood, textiles) only.

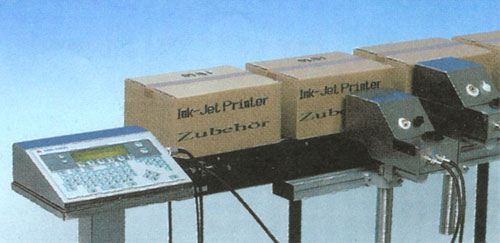

As one of the first controllers world-wide the EBS 1500 can support up to 8 printheads - EM and Piezo. (Option)
The EBS 1500 combines text editing, graphics, bar-codes as well as data matrix codes with an user-friendly graphics interface, no computer is necessary. A complete well tested software and steel housing construction shows the high quality standard of the EBS 1500, inside and outside. Several extras e.g. the printhead holder or consumables like special inks (pigmented ink, UV-ink, food grade ink., security ink, etc) completes our product range.
|
TECHNICAL DATA:
Controller
- Printhead : max. 8
- Matrix : 5 x 5, 7 x 5, 9 x 5, 9 x 7, 11 x 8, 12 x 6, 12 x 7, 14 x 9,
16 x 10, 16 x 14, 21 x 15, 25 x 15, 32 x 18, 64 x 36
- Memory : 1024 texts; 256kB
EM-Printheads
- No of nozzles: 5, 7, 12, 16, 25, 32, 64
- Character size : 5-115 mm
- Position of head : any
- Ink type : Solvent based
- Distance to object : 2-20 mm
- Print speed : depends on the matrix
Piezo-Printheads
- No of nozzles: 96, 192, 352
- Character size : 10-48 mm
- Position of head : horizontal
- Ink type : Glycol-based
- Distance to object : < 4 mm
- Print speed : max. 2 m/s
